Fuse access

I rewired my ATX power supply breakout board so that I would have ready access to the fuses. Probably gonna blow a few of those! The fuses are 5A 250V fast blow (F5A250V) so I can’t draw more than 60 Watts (at 12V). You can see in the previous post and the picture at the bottom of this post that the terminals used to be connected above the fuses, impeding access.

The ATX power supply breakout board is a Geekcreit® XH-M229 Desktop Computer Chassis Power Supply Module ATX Transfer Board Power Output Terminal Module.

This is the new setup:

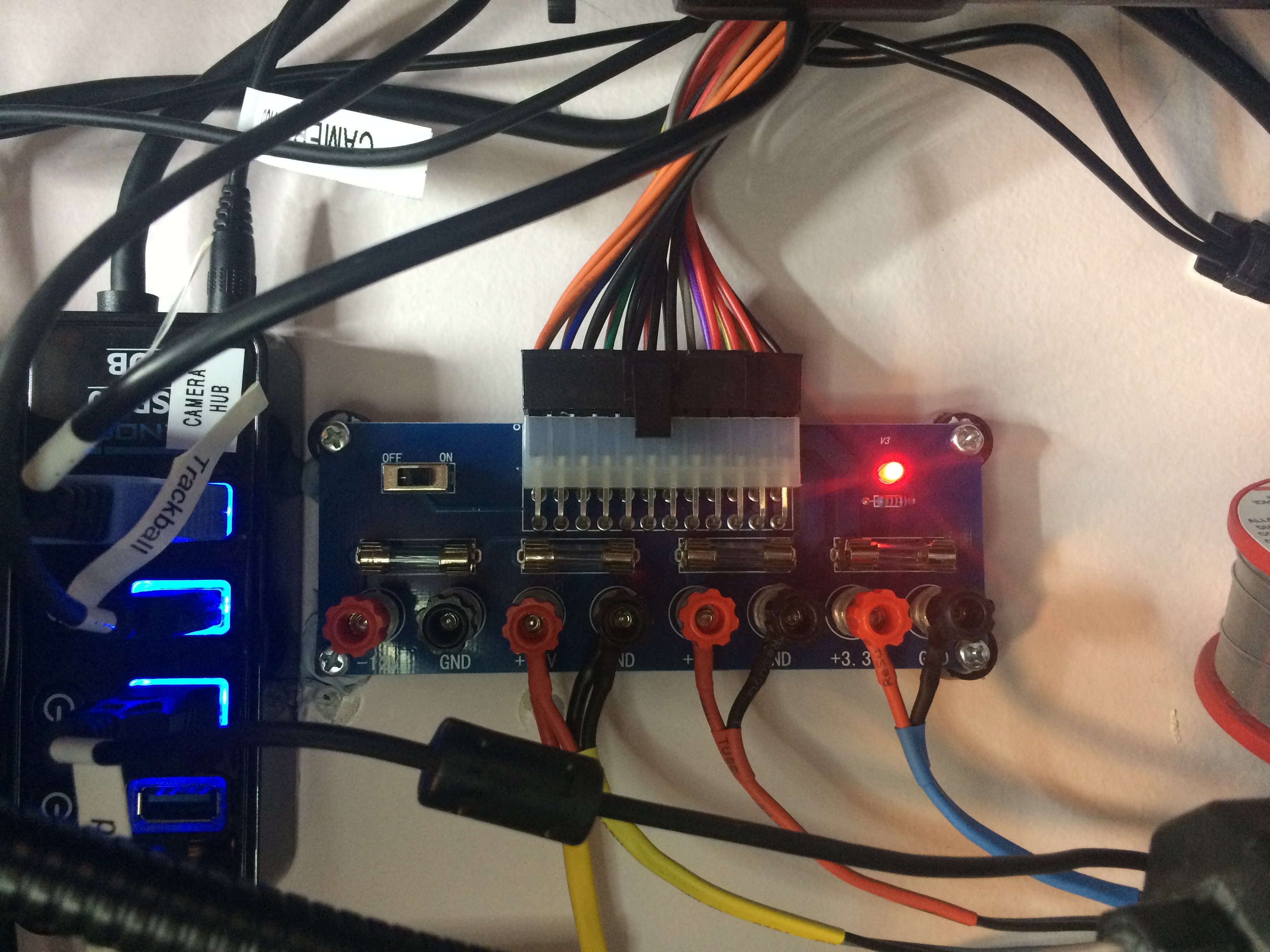

ATX power supply breakout board with 3.3V, 5V, and 12V wiring

This is the old setup:
Previously the fuses weren't accessible
