Here’s me in the lab recording a New Book Teardown for Electricity and Magnetism this April Fool’s Day.
Happy April Fool’s Day
Reply
Tag Archives: lab
Concluding Maxitronix 20in1 | Maxitronix 20in1 | Learning Electronics In The Lab With Jay Jay
This post is part of my video blog and you can find more information about this video over here.
You can support this channel on Patreon: patreon.com/JohnElliotV
In this video we conclude our Maxitronix 20in1.
The videos we made for this feature of the show:
- Introducing Maxitronix 20in1
- Brightness Alarm | Project 1/20
- Darkness Alarm | Project 2/20
- Electronic Candles | Project 3/20
- Light Alarm With Latch | Project 4/20
- Light-Controlled Organ | Project 5/20
- Photometer | Project 6/20
- Shot In The Dark I | Project 7/20
- Shot In The Dark II | Project 8/20
- Visitor Alarm | Project 9/20
- Speech Conductor | Project 10/20
- Burglar Alarm | Project 11/20
- Magnetism Detector | Project 12/20
- Ferromagnetic Substance Detector | Project 13/20
- Non-Touch Switch | Project 14/20
- Glass Organ | Project 15/20
- High-Water Indicator | Project 16/20
- Low-Water Indicator | Project 17/20
- Rain Detector | Project 18/20
- Touch Buzzer | Project 19/20
- Weather Indicator | Project 20/20
- Concluding Maxitronix 20in1
Thanks very much for watching! And please remember to hit like and subscribe! :)
Following is a product I use picked at random from my collection which may appear in my videos. Clicking through on this to find and click on the green affiliate links before purchasing from eBay or AliExpress is a great way to support the channel at no cost to you. Thanks!
Yum Cha Double-ended Cotton Swabs |
Let’s go shopping!
Weather Indicator | Project 20/20 | Maxitronix 20in1 | Learning Electronics In The Lab With Jay Jay
This post is part of my video blog and you can find more information about this video over here.
You can support this channel on Patreon: patreon.com/JohnElliotV
In this video we do the 20th project from the Maxitronix Sensor Robot 20 (20in1) Electronics Project Lab Kit: Weather Indicator.
We use the Rigol MSO5074 Mixed Signal Oscilloscope to have a look at the two square waves from the astable multivibrators.
We use the UNI-T UTi260B Thermal Imager to investigate the circuit’s heat profile.
We use the Riden RD6006 Bench Power Supply to deliver 9V to power the circuit and to report on its current draw.
Thanks very much for watching! And please remember to hit like and subscribe! :)
Following is a product I use picked at random from my collection which may appear in my videos. Clicking through on this to find and click on the green affiliate links before purchasing from eBay or AliExpress is a great way to support the channel at no cost to you. Thanks!
Yum Cha Macro Programmable 8-Key Mechanical Keyboard |
Let’s go shopping!
Touch Buzzer | Project 19/20 | Maxitronix 20in1 | Learning Electronics In The Lab With Jay Jay
This post is part of my video blog and you can find more information about this video over here.
You can support this channel on Patreon: patreon.com/JohnElliotV
In this video we do the 19th project from the Maxitronix Sensor Robot 20 (20in1) Electronics Project Lab Kit: Touch Buzzer.
This circuit uses a Darlington pair to amplify the very weak signal from the touch sensor.
We use the Rigol MSO5074 Mixed Signal Oscilloscope to look at the square wave from the astable multivibrator.
We use the UNI-T UTi260B Thermal Imager to examine the thermal characteristics of the circuit, particularly the 1K resistors getting warm.
We use the Riden RD6006 Bench Power Supply to provide 9V for our circuit and also to measure the current drawn by the circuit in its inactive (11mA) and active (12mA) states.
Thanks very much for watching! And please remember to hit like and subscribe! :)
Following is a product I use picked at random from my collection which may appear in my videos. Clicking through on this to find and click on the green affiliate links before purchasing from eBay or AliExpress is a great way to support the channel at no cost to you. Thanks!
Maxitronix 500in1 Electronics Project Lab Kit notes |
Let’s go shopping!
Rain Detector | Project 18/20 | Maxitronix 20in1 | Learning Electronics In The Lab With Jay Jay
This post is part of my video blog and you can find more information about this video over here.
You can support this channel on Patreon: patreon.com/JohnElliotV
In this video we do the 18th project from the Maxitronix Sensor Robot 20 (20in1) Electronics Project Lab Kit: Rain Detector.
We use the Rigol MSO5074 Mixed Signal Oscilloscope to see the 1.6 kHz square wave from our astable multivibrator.
We use the UNI-T UTi260B Thermal Imager to watch the thermal effects of the circuit. We see both the 1K resistors in the astable multivibrator get warm, but only the activated side of the bistable multivibrator gets warm.
We use the Fluke 17B+ Digital Multimeter to buzz out the circuit looking for mistakes.
We use the Riden RD6006 Bench Power Supply to provide 9V for our circuit. I make a mistake and connect it the wrong way around to begin with!
Thanks very much for watching! And please remember to hit like and subscribe! :)
Following is a product I use picked at random from my collection which may appear in my videos. Clicking through on this to find and click on the green affiliate links before purchasing from eBay or AliExpress is a great way to support the channel at no cost to you. Thanks!
TOOKKS HZY ABS Wire Fixture notes |
Let’s go shopping!
Low-Water Indicator | Project 17/20 | Maxitronix 20in1 | In The Lab With Jay Jay
This post is part of my video blog and you can find more information about this video over here.
You can support this channel on Patreon: patreon.com/JohnElliotV
In this video we do the 17th project from the Maxitronix Sensor Robot 20 (20in1) Electronics Project Lab Kit: Low-Water Indicator.
We use the Rigol MSO5074 Mixed Signal Oscilloscope to see the output of the astable multivibrator. In the video I make a mistake and attach the probe to the wrong pins.
We use the METCAL PS-900 Soldering Station to solder the wires I use for the banana plugs I attach to the touch sensor an voice sensor (microphone).
We use the UNI-T UTi260B Thermal Imager to look at the heat profile of the circuit. We see that the low resistances (470Ω and 1KΩ) get the warmest, but the higher resistances (e.g. 10KΩ) are also slightly visible.
We use the Fluke 17B+ Digital Multimeter to check the resistance of the touch sensor.
We use the Peak Electronic Design Atlas LCR45 LCR Meter to measure the resistance of the resistor we use in the LED attachment circuit. This extra circuit allows us to switch out the buzzer for an LED, which makes a lot less racket. The resistor it uses turned out to be 470Ω.
We use the Riden RD6006 Bench Power Supply to provide 9V for our test circuit. Usually I take a current reading to see how much power the circuit draws in its various states, but I forgot!
We use the Horusdy Soldering Station with Hot Air Gun for its hot air gun in order to shrink the heat shrink which we added to the banana plug cables we attached to our sensors.
Thanks very much for watching! And please remember to hit like and subscribe! :)
Following is a product I use picked at random from my collection which may appear in my videos. Clicking through on this to find and click on the green affiliate links before purchasing from eBay or AliExpress is a great way to support the channel at no cost to you. Thanks!
Yum Cha 9-Inch Needle Nose Pliers notes |
Let’s go shopping!
High-Water Indicator | Project 16/20 | Maxitronix 20in1 | In The Lab With Jay Jay
This post is part of my video blog and you can find more information about this video over here.
You can support this channel on Patreon: patreon.com/JohnElliotV
In this video we do the 16th project from the Maxitronix Sensor Robot 20 (20in1) Electronics Project Lab Kit: High-Water Indicator.
After we build the circuit we dump the sensor in a glass of water which causes the alarm to trigger. To avoid the obnoxious noise we put an LED in place of the buzzer.
Please be aware: while talking about this circuit I said that the astable multivibrator “flip flops” between states. And that’s kind of true in one sense, but I should be clear than an astable multivibrator is not a “flip flop” circuit. A flip flop circuit is a different type of circuit known as a bistable multivibrator, which is a different kind of thing. In this experiment we use an astable multivibrator to generate a 1.62 kHz square wave which provides our tone, we do not use a flip flop or bistable multivibrator circuit.
We use the Rigol MSO5074 Mixed Signal Oscilloscope to measure and visualize the 1.62 kHz square wave which generates our tone.
We use the UNI-T UTi260B Thermal Imager to investigate the circuit thermals. We see that the 1K resistors in the astable multivibrator generate the most heat.
We use the Fluke 17B+ Digital Multimeter to measure the voltage across Q5. Between about 500 mV and 750 mV is enough voltage to enable the output.
We use the Riden RD6006 Bench Power Supply to deliver the 9V DC required for the project. We use the current measurement from the power supply to see that when the LED is active the circuit draws about 23 mA compared to about 11 mA when the LED is not active.
We use the Horusdy Soldering Station with Hot Air Gun to dry the sensor after it got wet.
Thanks very much for watching! And please remember to hit like and subscribe! :)
Following is a product I use picked at random from my collection which may appear in my videos. Clicking through on this to find and click on the green affiliate links before purchasing from eBay or AliExpress is a great way to support the channel at no cost to you. Thanks!
Ausum 25 In 1 Precision Screwdriver Set notes |
Let’s go shopping!
Dear Diary
Just wanted to take a happy snap of the lab today. All is flux. All is temporary.
State of the lab

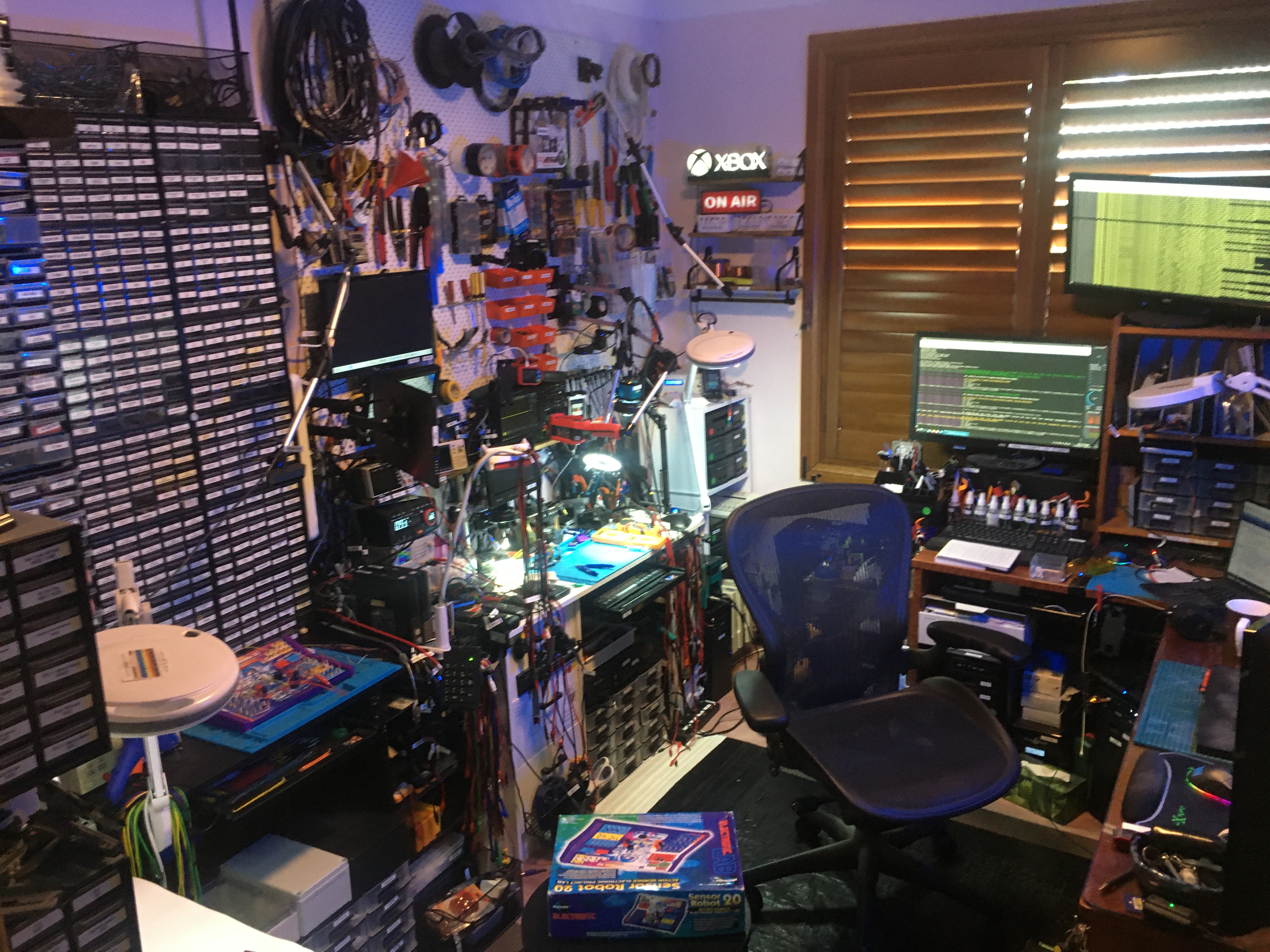

Thought today was snapshot worthy. Here is my lab as it stands at the end of 2023:
And this is what my lab looked like two years ago, when it began:
Progress on lab upgrade
The lab upgrade is going fairly well. I have to say I’m a bit impatient for my ‘verve‘ hardware to arrive. The CPU is here, just waiting for the case, PSU, and RAM. And one of the PCIe adapters.
That bunch of cables on the floor is roughly where ‘verve’ will go when it gets here and has been assembled.
